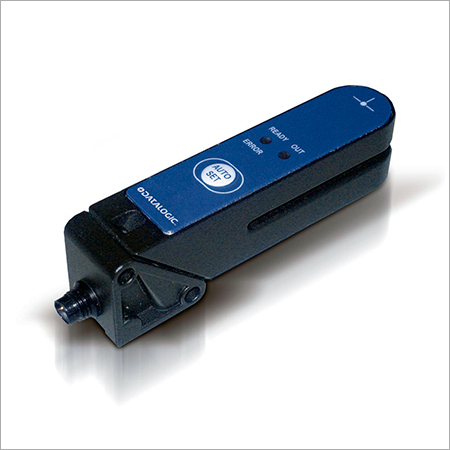

DATALOGIC Slot Type Print Mark Sensor

DATALOGIC Slot Type Print Mark Sensor
DATALOGIC Slot Type Print Mark Sensor
Product Code : SR21-IR
Brand Name : DATALOGIC
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Specifications
  • Minimum Order Quantity
  • Product Type
  • Print Mark Sensor
  • Material
  • Metal Housing
Trade Information
  • FOB Port
  • KOLKATA
  • Main Domestic Market
  • East India
Product Description

Features of SR21 SERIES

 High 25 kHz switching frequency

 IR or red/green light models

 Detection of  Semi-transparent labels

 Detection of  Register marks on transparents

 4 wire Antivalent NPN and PNP output



 TECHNICAL  DATA

Power supply: ............................................... 10 ... 30 Vdc, reverse polarity protection

Consumption: ............................................... 55 mA max.

Light emission: ............................................. infrared LED 880 nm (IR vers.)

red 635 nm/green LED 535 nm (RG vers.)

Resolution: ....................................................0.5 mm

Slot width: ..................................................... 2 mm

Slot depth: .....................................................50 mm

Detection point depth: ................................. 7.5 mm

Setting: .......................................................... AUTO SET push-button

Indicators: ..................................................... yellow OUTPUT LED

green/red bicolour  READY/ERROR LED

Output type: .................................................. NPN and PNP

Saturation voltage: ....................................... 2 V max.

Output current: ............................................. 100 mA max., short-circuit protection

Switching frequency: ................................... 25 kHz

Operating mode: ........................................... dark/light configurable

Connection: ...................................................M8 4-pole connector

Electrical protection: ....................................class 1

Mechanical protection: ................................ IP65

Housing material: ......................................... ZAMA

Lens material: ............................................... glass

Weight: .......................................................... 120 g max.

Operating temperature: ............................... -20 ... +60°C

Storage temperature: ................................... -20 ... +70°C

Reference standard: ..................................... EN 60947-5-2


PROTECTION AND CONTROLS
