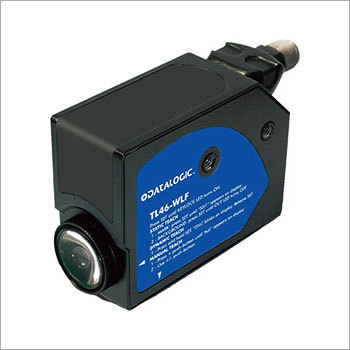

Datalogic Sensor

Get a Price/Quote

MOQ : 1 Piece

Datalogic Sensor Specification

Product Type
Print Mark Sensor

Material
PBT Housing

Input
10 - 30 VDC

Output
PNP / NPN

Function
Registration Mark / I Mark Sensing

Usage
Packaging Industry

Voltage
10 - 30 VDC Volt (v)

Datalogic Sensor Trade Information

Minimum Order Quantity
1 Piece

FOB Port
KOLKATA

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Sample Policy
Contact us for information regarding our sample policy

Main Domestic Market
All India

About Datalogic Sensor

Features

High resolution and RGB LED emission with automatic colour selection
Very fast switching frequency and low response time
Easy sensor setting by means of two push buttons Mark/Bkgd
Sturdy plastic housing with standard dimensions and fixing holes

Technical Specification

Power supply: 10 ¦ 30 Vdc , reverse polarity protection
Ripple: 2 Vpp max.
Consumption: 50 mA max. at 24Vdc
Light emission: RGB LED (630nm red, 520nm green, 465nm blue)
Spot dimension: 1.5 x 5 mm at 9 mm
Operating distance: 9 mm
Depth of field: ± 3 mm (with standard 9 mm lens)
Setting: MARK push-button
BKGD push-button
Indicators: yellow OUTPUT LED
green READY LED
orange DELAY LED
Output type: 1 PNP output / 1 NPN output
Output current: 100 mA max.
Saturation voltage: 2 V
Response time: 33 ¼s
Switching frequency: 15 kHz
Operating mode: dark/light automatic
Timing function: 0 ... 20 ms selectable
Connections: 4-pole M12 connector
Electrical protection: class 2
Mechanical protection: IP67
Protection devices: A, B
Housing material: ABS
Lens material: PMMA
Weight: 90 g max.
Operating temperature: -10¦55°C
Storage temperature: -20¦70°C

Accurate Mark Detection

Designed to precisely detect registration marks and I marks, this sensor boosts efficiency in packaging lines. Its high sensitivity minimizes errors and improves end-product quality, supporting smoother workflow and fewer equipment stoppages.

Durable PBT Construction

The sensors PBT housing offers exceptional resistance to chemicals and physical impacts, making it ideal for harsh industrial environments. This robust construction significantly extends the product lifecycle and reduces maintenance requirements.

Flexible Integration and Output

Supporting both PNP and NPN outputs, along with a broad 1030 VDC input range, the sensor accommodates diverse automation setups. It fits seamlessly into existing control systems, simplifying installation for suppliers and end-users alike.

FAQs of Datalogic Sensor:

Q: How does the Datalogic Sensor function in packaging applications?

A: The sensor identifies registration and I marks on packaging materials, ensuring precise position control for cutting, folding, and labeling operations. It enhances accuracy and reduces material wastage in automated packaging lines.

Q: What output types are available for the Datalogic Sensor?

A: This sensor provides both PNP and NPN output options, offering flexibility to integrate with various PLCs and control systems commonly used in the packaging sector.

Q: When should I use a sensor with PBT housing in the packaging industry?

A: PBT housing ensures robustness and chemical resistance, making the sensor suitable for environments where exposure to solvents, abrasion, and mechanical stress is common in packaging processes.

Q: Where can I purchase or source the Datalogic Sensor in India?

A: You can obtain the sensor through authorized distributors, suppliers, and traders across India. These channels offer product support, reliable delivery, and technical guidance tailored to local industry requirements.

Q: What is the installation process for this sensor in automated lines?

A: Installation involves connecting the sensor to a compatible power supply (1030 VDC), linking the chosen output (PNP/NPN) to the control system, and mechanically mounting it according to the marking detection location.

Q: How can using this sensor benefit my packaging operation?

A: Integrating the Datalogic Sensor improves process precision, decreases error rates, supports automation, and enhances overall workflow efficiency, resulting in cost savings and higher product quality.
